225TMi-CNC
Machining Capability
Hard Turning
Turn Mate
Application
-
-
-
-
-

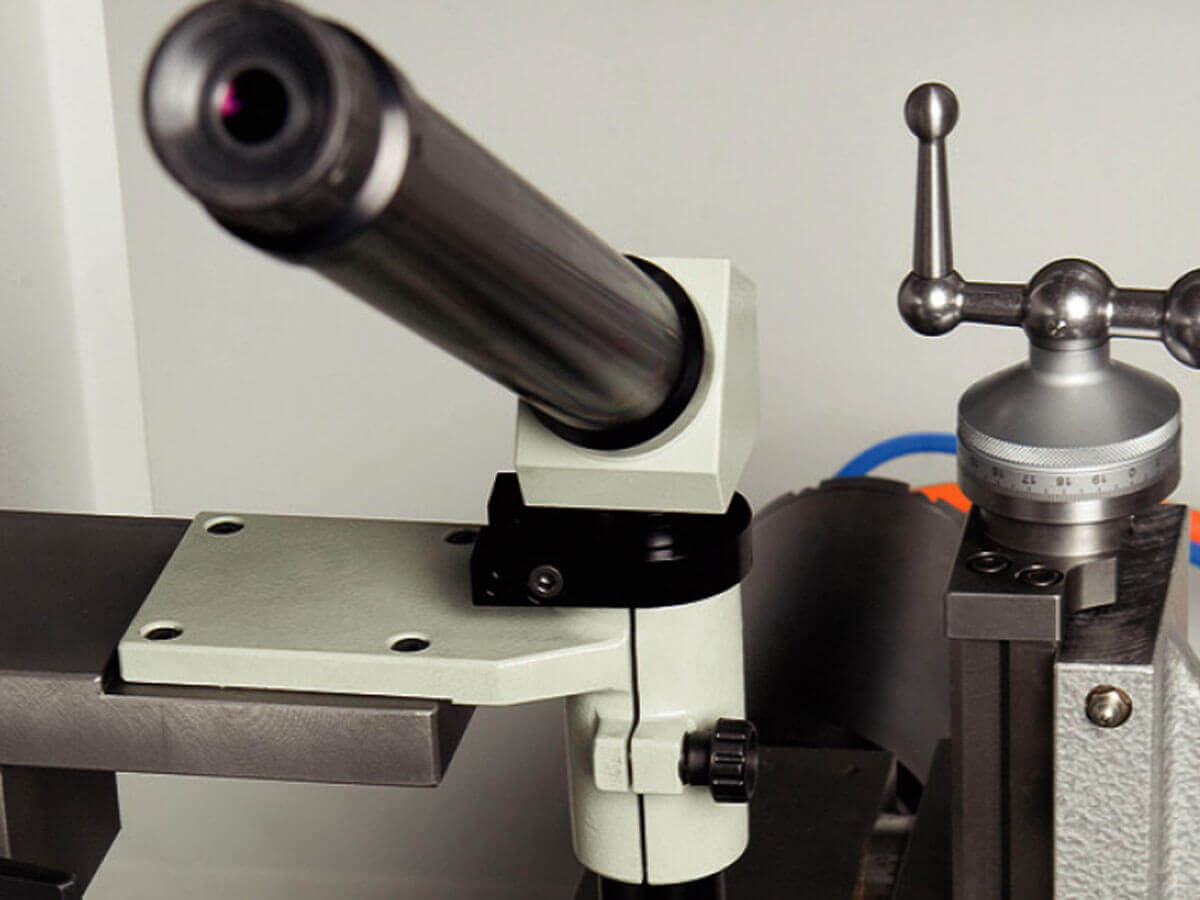

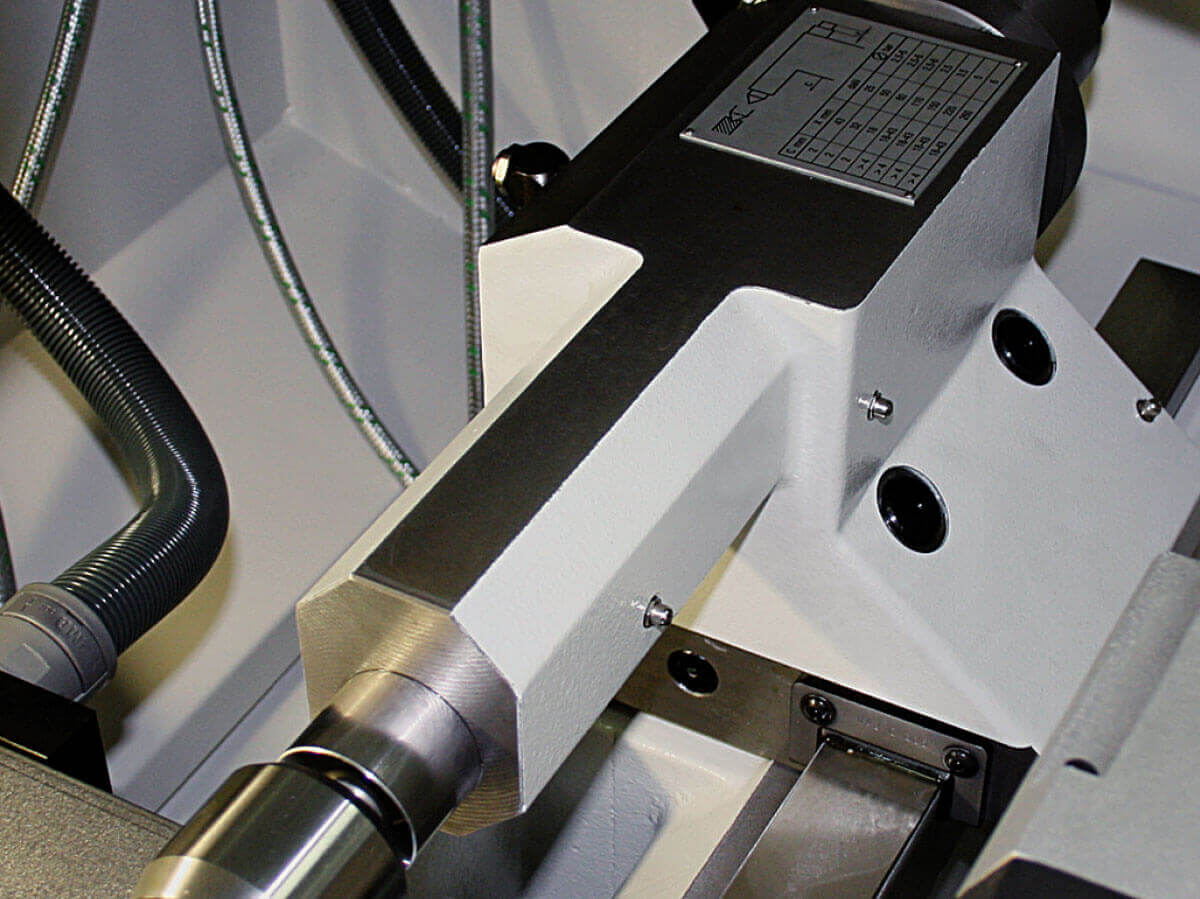

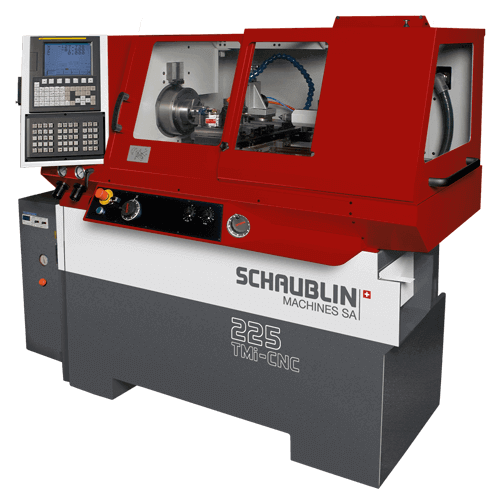

NEW MACHINE. With C AXIS, 8,000 rpm. High-precision lathes with numerical control by Fanuc. Like a conventional lathe, these machines can be operated by means of handwheels or they can be controlled numerically. The Turn Mate function is very easy to use and does not demand ISO programming knowledge. A2-4 spindle nose. These lathes are ideal for hard turning.
- Ra=0.2~0.4
- Spindle with integrated motor and C axis
- Machine combined with CNC control
- Spindle technology up to 8,000 rpm
Flexibility
Longevity
High precision

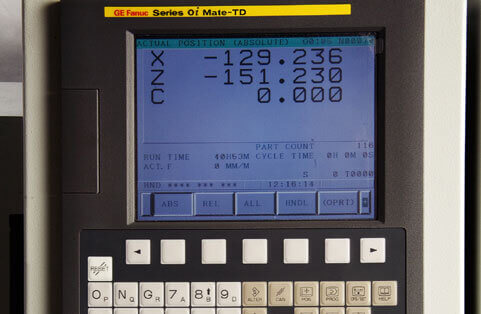

CNC-Turning as Simple and Flexible as Conventional Turning
The CCN (conventional control numerical) lathe combines the advantages of a numerical control and the simplicity of a conventional lathe.

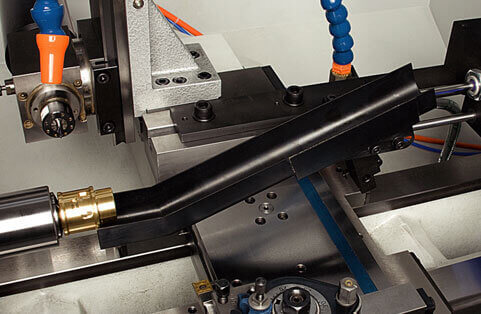

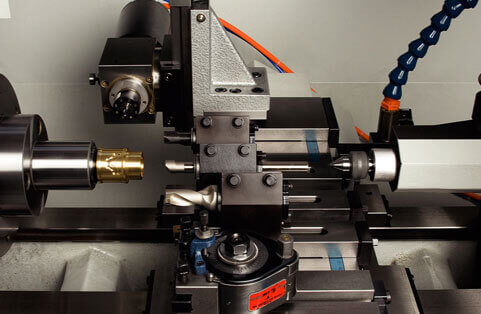

High Speed Spindle Technology
With C axis, the machine feature spindle technology up to 50-8,000 rpm.
Hrc 65
Suitable for hard turning 65 Hrc
Generating a surface of RA= 0.2~0.4
Specification

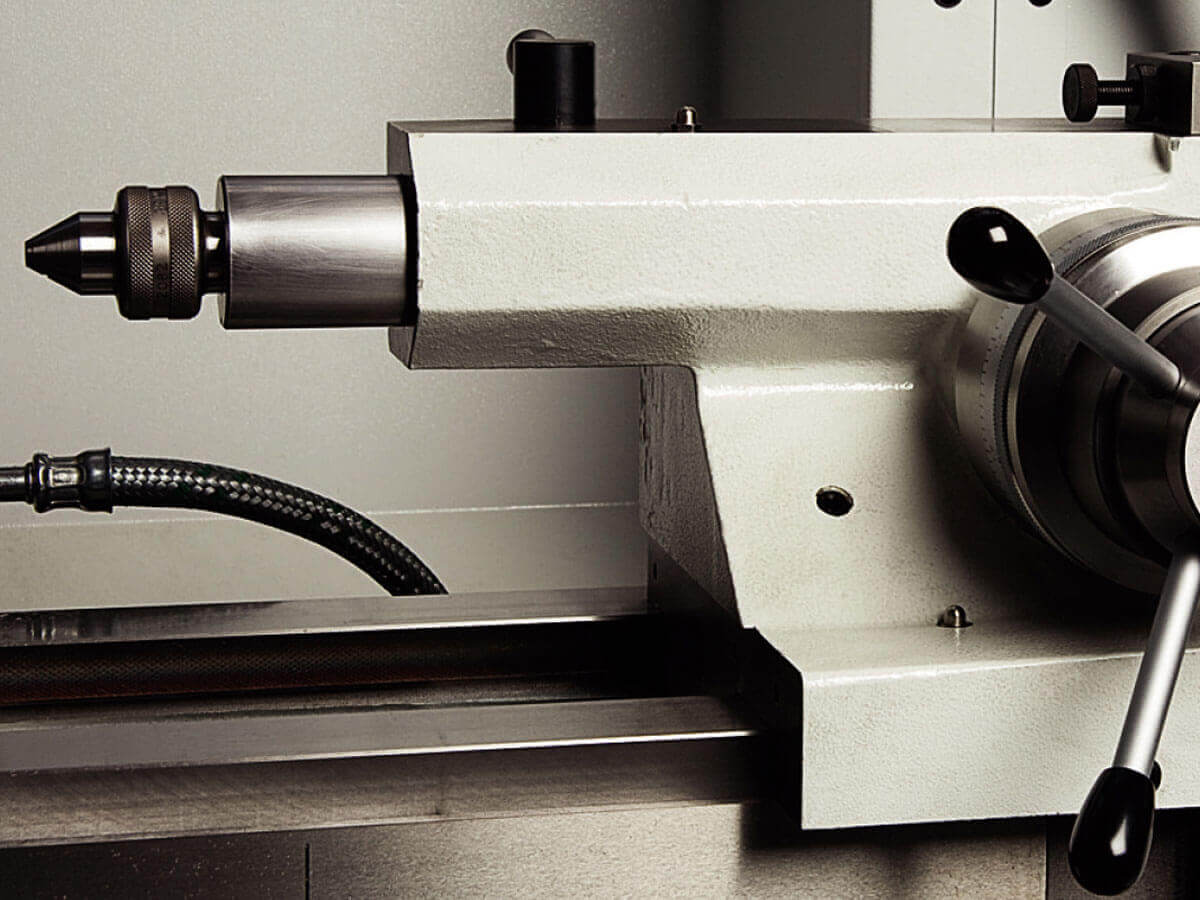

| ITEM | 225 TMi-CNC |
|---|---|
| Machining Capacity | |
| Height of centres over bed | 125 mm |
| Height of centres over carriage | 60 mm |
| Maximum turning diameter | 270 mm |
| Maximum swing over carriage | 115 mm |
| Turning length with collets | ‐ |
| Headstock A2-4 | |
| Spindle for SCHAUBLIN collets | B45/B32/W31.75/W25/W20 |
| Spindle speed | 50 - 8000 min-1 |
| AC motor drive:Power continuous/ intermittent | 2.5/5.5 Kw |
| Programmable increment | 0.001° |
| Spindle throughbore (without drawbar) | 40 mm |
| Spindle throughbore with collet | B45：36 mm |
| Carriage | |
| Transverse stroke, X-axis | 190 mm |
| Resolution, X axis (on-radius) | 0.0005 mm |
| AC motor drive: Continuous/ intermittent torque | ‐ |
| Longitudinal stroke, Z-axis | 410 mm |
| Resolution, Z- axis | 0.001 mm |
| AC motor drive, continuous / intermittent torque | ‐ |
| Pneumatic chucking (Option) | |
| Maximum spindle speed | 8,000/ 6,000 -1 |
| Adjustable axial clamping force, at 5 bars | 800/ 1,520 daN |
| Tooling system: Linear | |
| Number of radial toolholder (according to Ø of the piece) | 2 |
| Number of frontal toolholder (according to Ø of the piece) | 2~5 |
| Maximum tool size (MULTIFIX / TRIPAN / SMSA) | 16 x 16 mm |
| Milling and Grinding attachment (options) | 20 mm |
| Clamping tools for collets | ESX 20 |
| Screw-type tailstock | |
| Internal taper of the sleeve | MORSE 2 |
| Spindle OD | 35 mm |
| Spindle stroke | 100 mm |
| Tank with coolant | |
| Tank capacity | 55 l. |
| Pump displacement capacity | 10 l/min |
| Pressure of waterning pump | 1.7 bars |
| Dimensions and weight | |
| Approximate net weight of the machine | 1,250 kg |
| Load floor | 1,800 kg/m² |
| Load floor | 1,950 x 1,100 x 1,610 mm |
The 225 TMi-CNC High Precision Lathe is in conformity with the European Community safety regulations. In view of the constant improvements made to our products, technical data illustrations, dimensions, and weights appearing in this catalogue are subject to change without notice.
