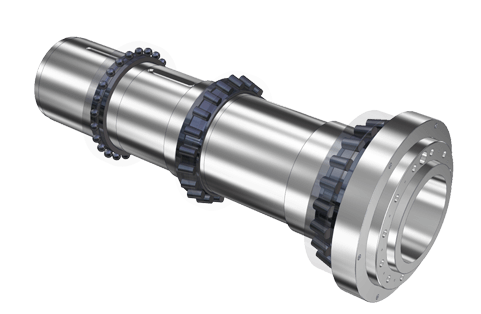

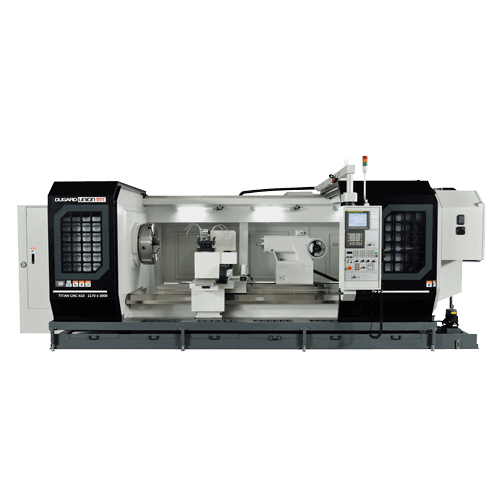

主軸大孔徑
3組高精度主軸圓錐滾子軸承，確保加工切削剛性及同心度。

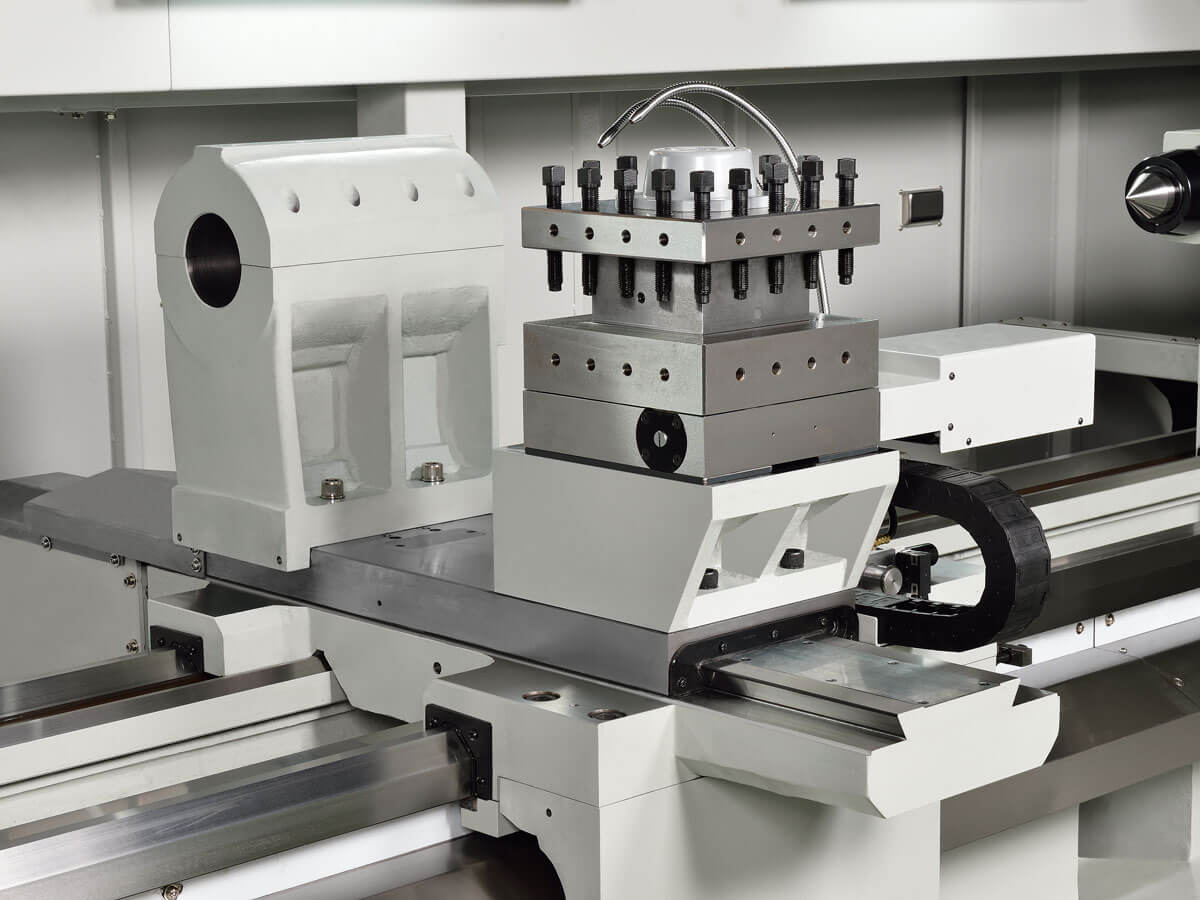

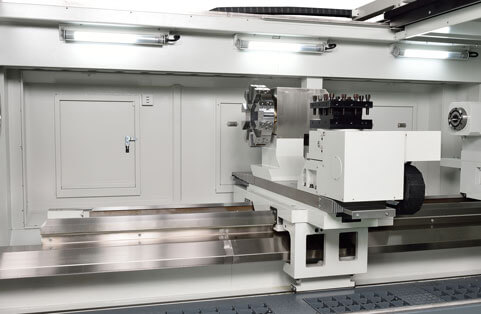

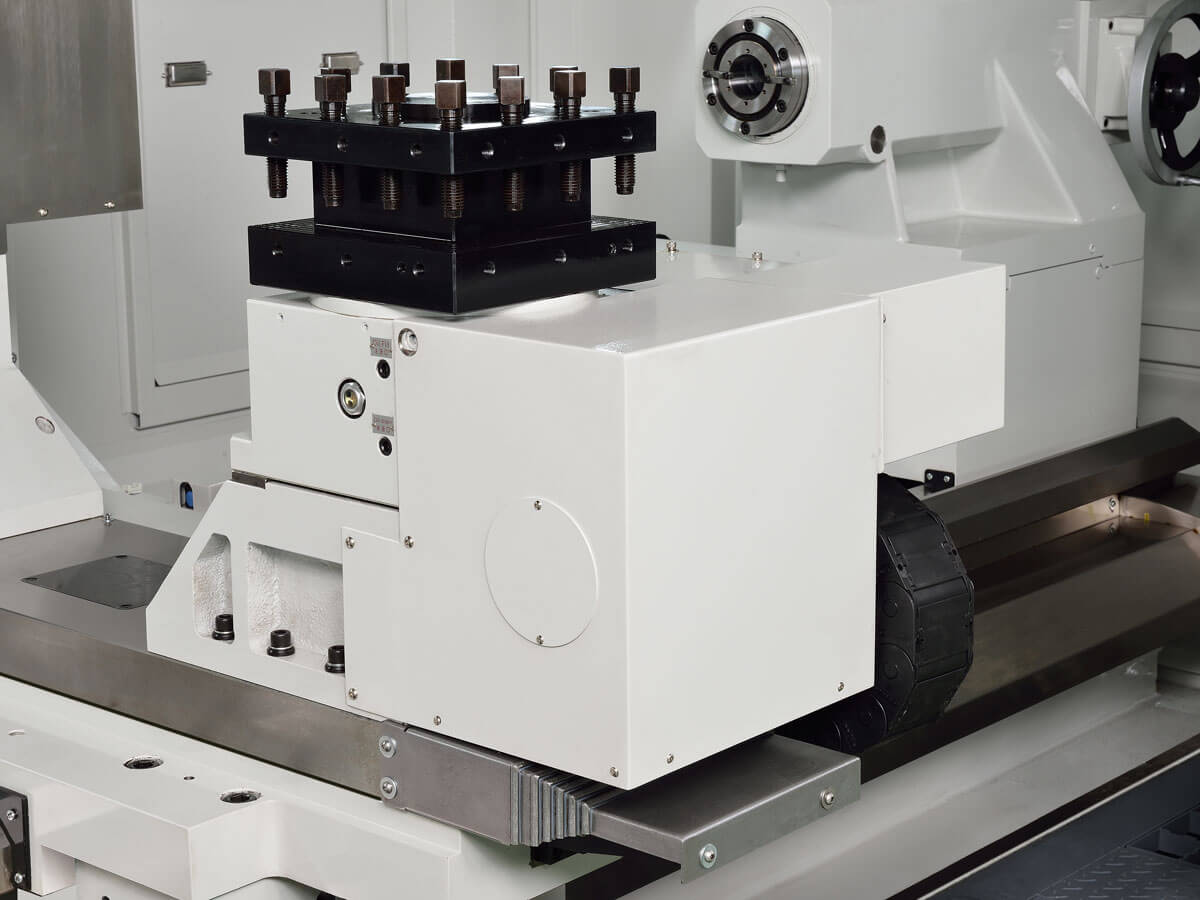

寬滑座與鞍座
採用寬滑座及鞍座設計，提高加工接觸面積，以增加切削剛性。

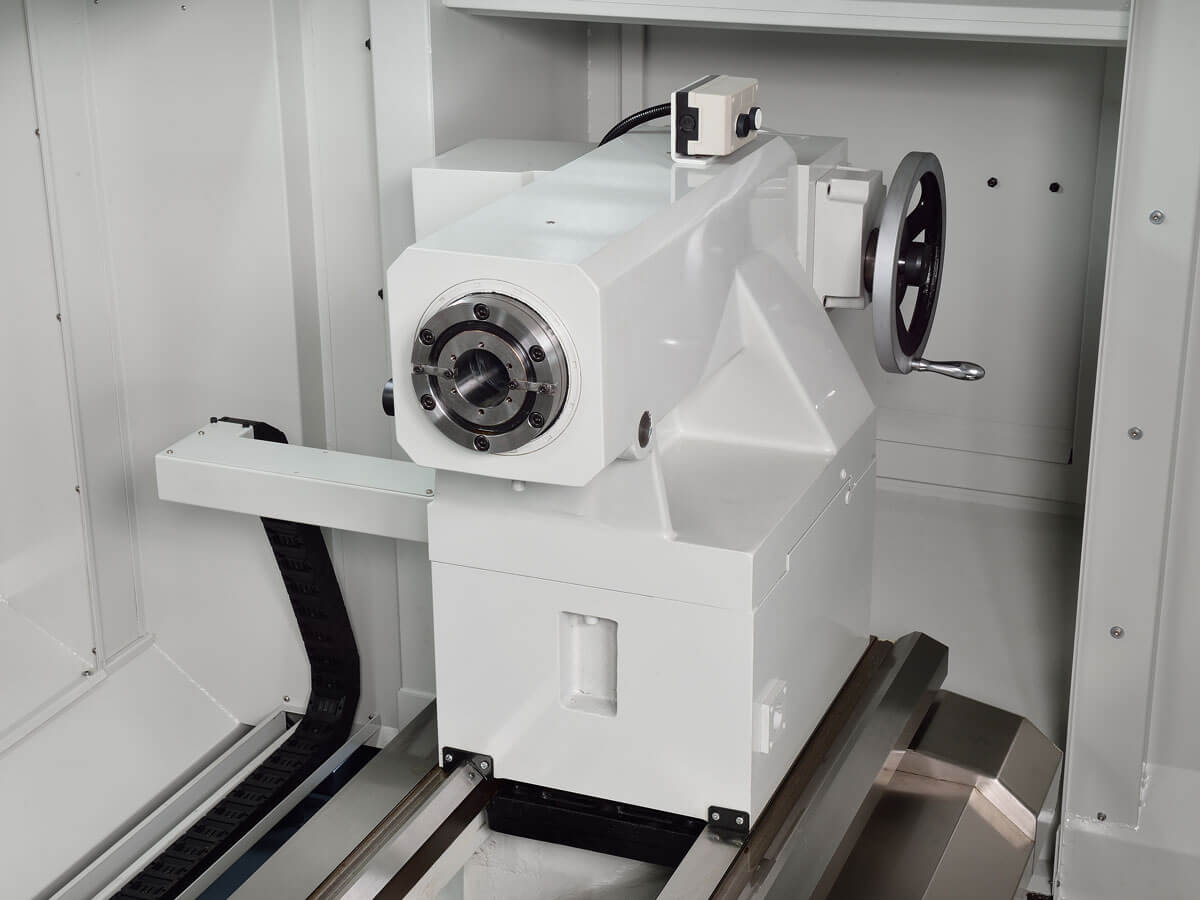

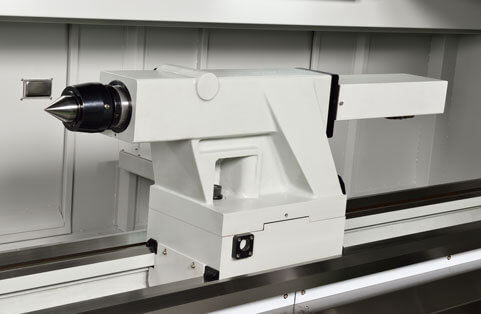

強固尾座
強固式尾座採用 MT#6或MT#7 心軸內錐孔，以提高重切削與鑽孔能力。
規格表
| TC 510 | TC 610 | TC 810 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ITEM | 860 | 960 | 1060 | 1170 | 1270 | 1370 | 1400 | 1600 | 1800 | |||||
| 加工能力 | ||||||||||||||
| 中心高 | 430 mm (16.93") |
480 mm (18.90") |
530 mm (20.87") |
585 mm (23.03") |
635 mm (25.00") |
685 mm (26.98") |
700 mm (27.56") |
800 mm (31.50") |
900 mm (35.43") |
|||||
| 床面上旋徑 | 860 mm (33.86") |
960 mm (37.80") |
1,060 mm (41.73") |
1,170 mm (46.06") |
1,270 mm (50.00") |
1,370 mm (53.94") |
1,400 mm (49.12") |
1,600 mm (62.99") |
1,800 mm (70.87") |
|||||
| 床面寬度 | 510 mm (20.08") | 610 mm (24.02") | 810 mm (31.89") | |||||||||||
| 導軌 | 3V Guideways | 3V Guideways + 1 support | 3V Guideways + 1 support | |||||||||||
| 主軸規格 | ||||||||||||||
| 主軸孔徑 | 105 mm | 153 mm | 230 mm | 318 mm | 153 mm | 230 mm | 318 mm | 380 mm | 410 mm | 153 mm | 230 mm | 318 mm | 380 mm | 410 mm |
| 主軸鼻端 | A2-8 | A2-11 | A2-15 | A2-20 | A2-11 | A2-15 | A2-20 | A2-20 | A2-28 | A2-11 | A2-15 | A2-20 | A2-20 | A2-28 |
| 主軸轉速 | 1,200 rpm | 1,000 rpm | 700 rpm | 500 rpm | 1,000 rpm | 700 rpm | 500 rpm | 450 rpm | 300 rpm | 1,000 rpm | 700 rpm | 500 rpm | 450 rpm | 300 rpm |
| 進給行程 | ||||||||||||||
| X軸行程 | 430 mm (16.93") |
480 mm (18.90") |
530 mm (20.87") |
585 mm (23.03") |
635 mm (25.00") |
685 mm (26.97") |
700 mm (27.56") |
800 mm (31.50") |
900 mm (35.43") |
|||||
| Z軸行程 | 1.2/ 1.7/ 2.7/ 3.7/ 4.7/ 5.7/ 6.7/ 7.7/ 8.7/ 9.7/ 10.7/ 11.7 m *travel changed by chuck, turret or tailstock |
1.7/ 2.7/ 3.7/ 4.7/ 5.7/ 6.7/ 7.7/ 8.7/ 9.7/ 10.7/ 11.7 m *travel changed by chuck, turret or tailstock |
1.7/ 2.7/ 3.7/ 4.7/ 5.7/ 6.7/ 7.7/ 8.7/ 9.7/ 10.7/ 11.7 m *travel changed by chuck, turret or tailstock |
|||||||||||
| 刀塔 | ||||||||||||||
| 刀架 | E4 Electronic | V8 Hydraulic | V8 Hydraulic | |||||||||||
| 尾座 | ||||||||||||||
| 心軸型式 | MT#6 | MT#6 (MT#7 Option) | MT#6 (MT#7 Option) | |||||||||||
| 心軸行程 | 300 mm (11.81'') | 300 mm (11.81'') | 300 mm (11.81'') | |||||||||||
*Please be aware of the continuous performance improving policy, UnionMT reserves the rights to change product specifications, data, options, appearances and etc. without notice.
