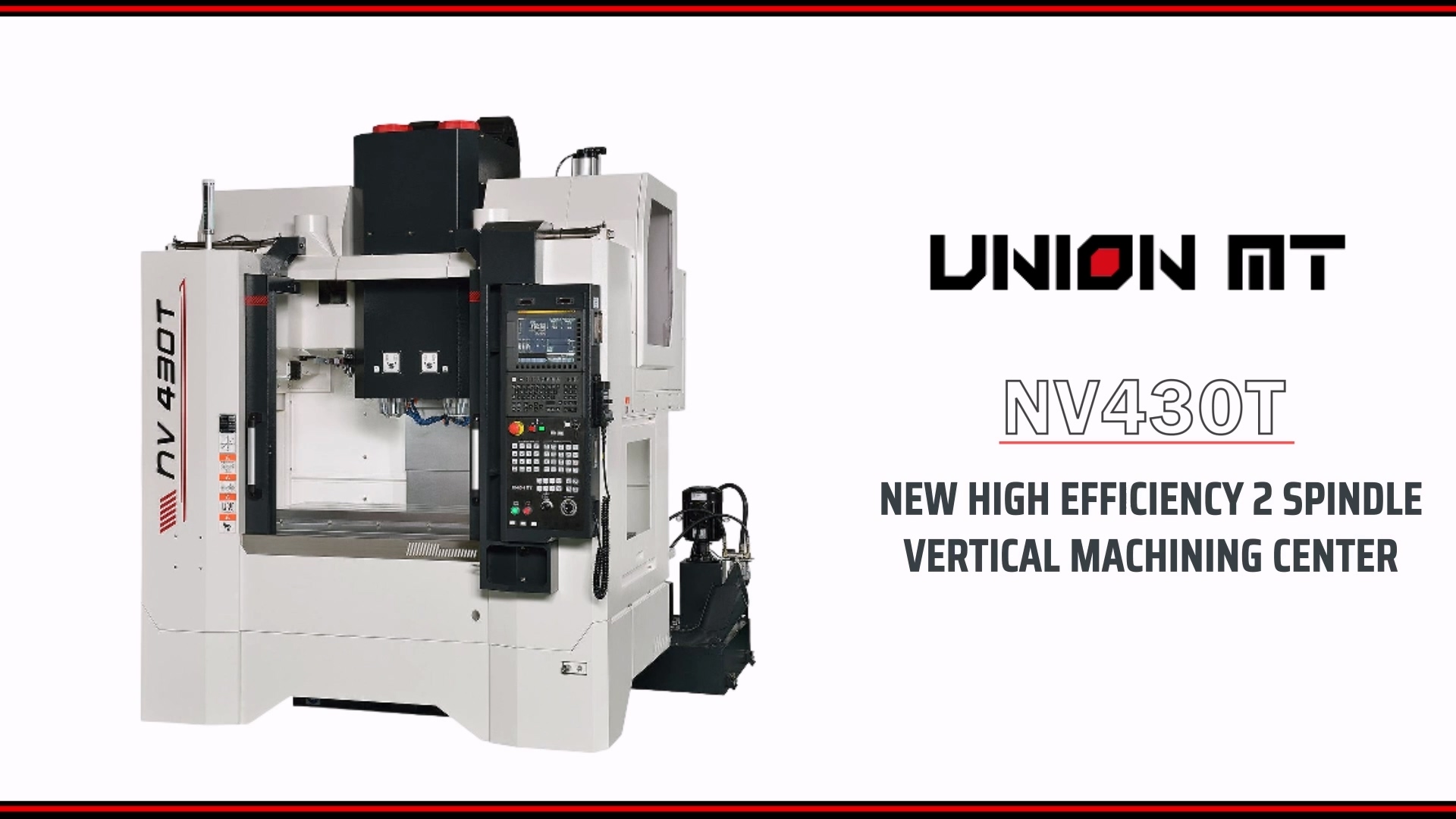

Multi-Spindle Machining Center

NV430T

Machining Capability

Twin Spindle

Application

Aerospace
Automotive
Precision Mold
Medical

NV430T series features higher production efficiency on the largest working range over the labor saving. With its compact footprint, space saving, energy saving and automation, NV430T is suitable to produce small or medium parts and execute superior accuracy machining applications.

Independent tool magazine sheet metal design, to solve the problem of oils, gas and chips
Left/right operation box with flexible design and excellent operability (Planning of CNC Automation Equipment)
Frequency conversion brake
Dual oil mist collector interface

Catalogue Enquiry

NV430T Multi-Spindle Machining Center Reliable and precision spindle

Compact footprint

NV430T Multi-Spindle Machining Center Dual contact faces BBT

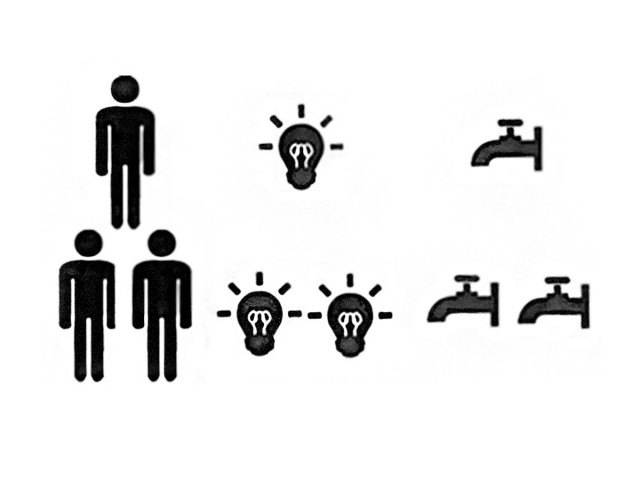

Efficient saving on manpower, energy waste, and cutting fluid

NV430T Multi-Spindle Machining Center Precision measurements better than ISO 10791-7 requirement

Available options for precision machining

NV430T Multi-Spindle Machining Center High Rigidity Structure

Mass Production 2 Spindel VMC

Two spindle simultaneously travelling with rigid type structure provides better stable machining performance and higher productivity when pursuing large volume production.

NV430T Multi-Spindle Machining Center High Speed Feed

Dual Spiral Chip Removal

Better chip removal and energy saving management.

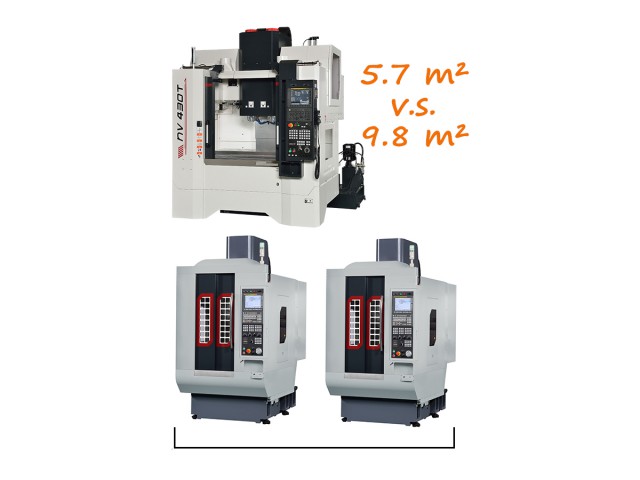

NV430T Multi-Spindle Machining Center Compact Floor Design

Smaller Footprint to Save Floor Space

More production through quick change fixture, rotary table, tilt/rotary table for efficiency operation.

Specification

ITEM	NV430T
Working Range
Travel X/ Y/ Z	480/435/450
Table size	1,200 x 410 mm
Table load capacity	500 kg
Main Spindle
Two spindle	BBT40
Distance between spindles	300 mm
Max. spindle speed	8,000 rpm
Max. spindle output	FANUC 13 Kw (S3-15%)
Feed Drive
Rapid travel X/ Y/ Z	36/ 36/ 36 m/min
Automatic Tool Changer
Magazine pots	24 x 2
Max. tool adj. w/o tool	75/ 150 mm
ISO 230-2 Accuracy
Positioning Accuracy	0.008 mm
Repeatability Accuracy	0.005 mm
Machine Size
Floor space W x D	1,920 x 3,100 mm
Weight	5,000 kg

-Please be aware of the continuous performance improving policy, UnionMT reserves the rights to change product specifications, data, options, appearances and etc. without notice.
