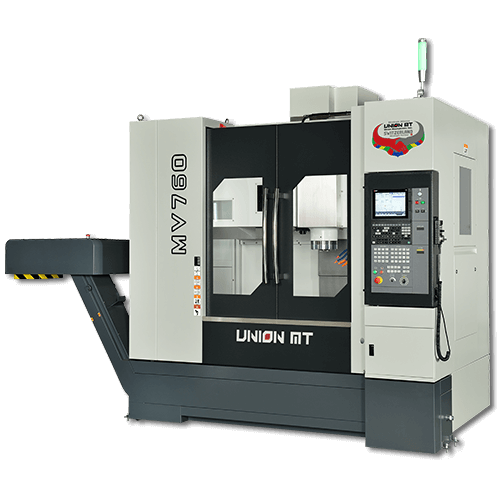

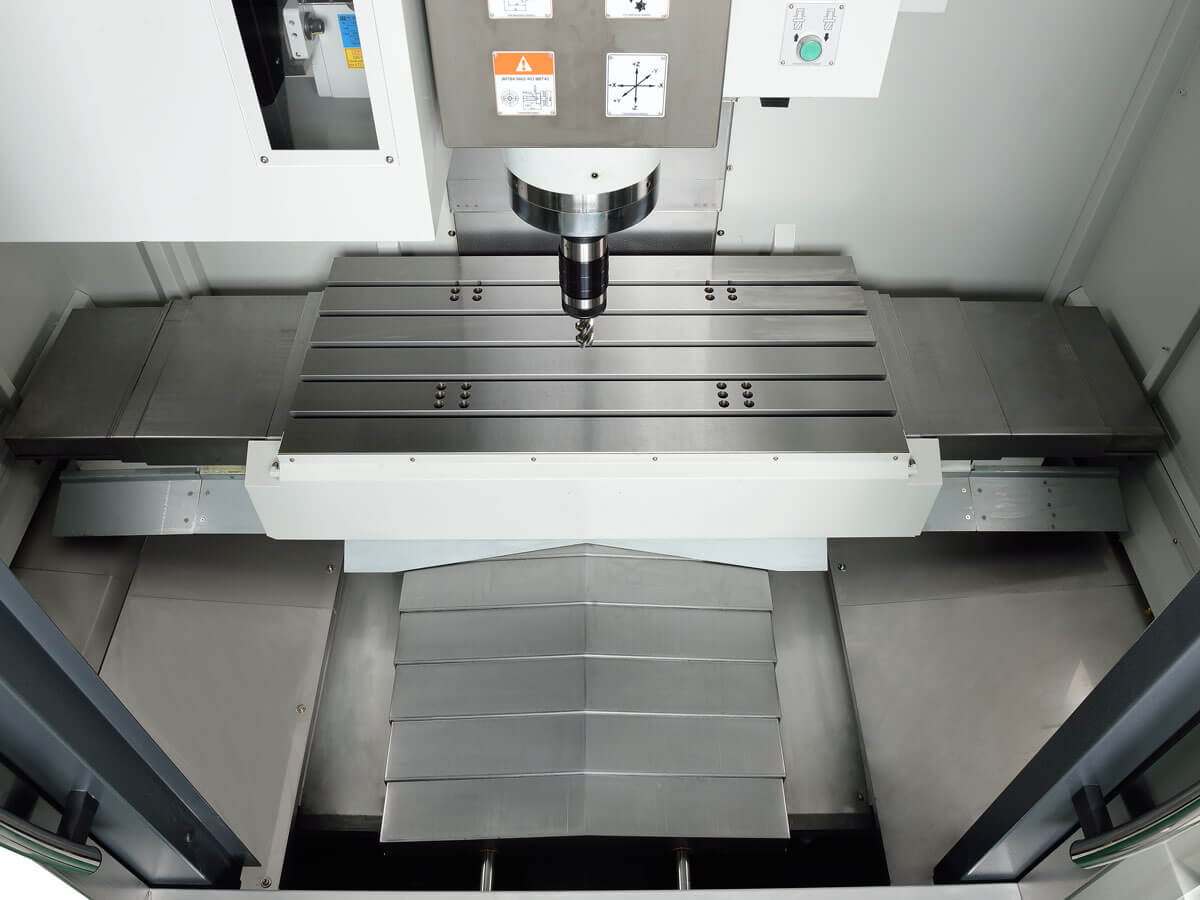

Vertical Machining Center
MV760
Machining Capability :
Mold
MV760 features the largest working range, exceptional accuracy and longevity from its excellent scrap skill enabling higher precision and operating efficiency.
- Acceleration rates of 1 G
- Machine stiffness > 2.5 kgf/um
- 48 m/min rapids
- Spindle technology up to 15,000 rpm
Application Industry
High Productivity

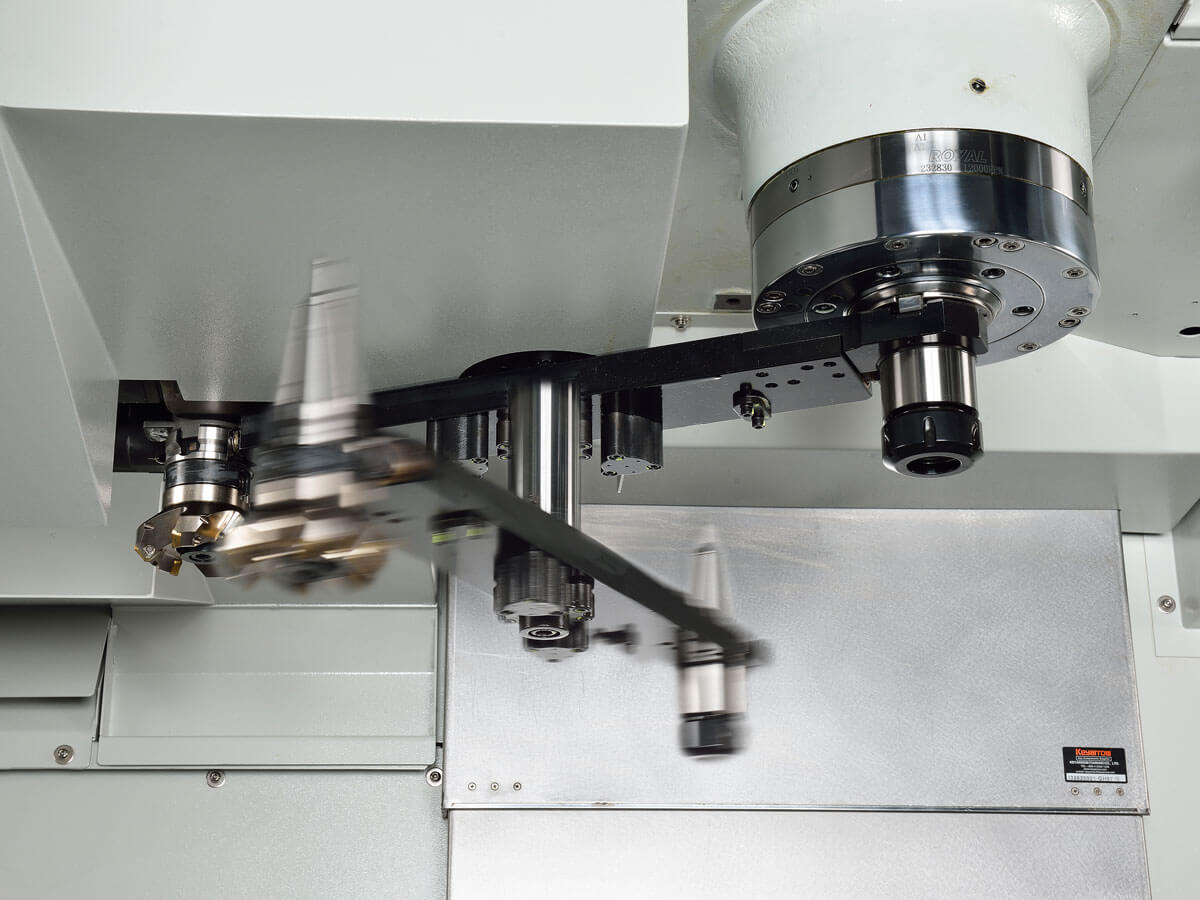

Standard swing arm ATC 24 tools with max. tool diameter 90 mm/ 180 mm, with/ without adjacent tool feature big surface milling and enable better surface roughness without surface gap.

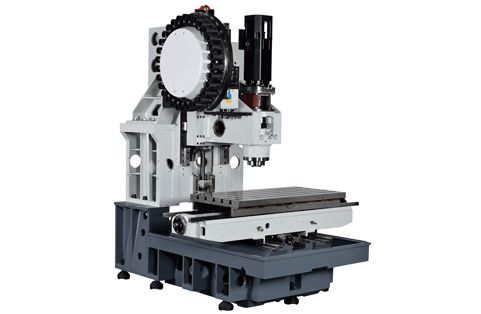

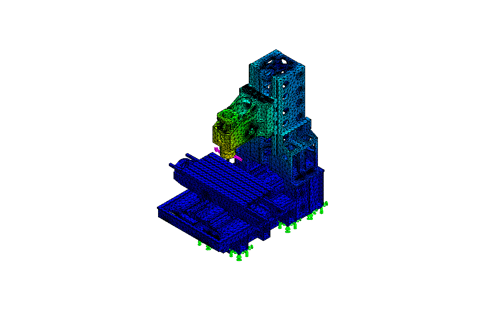

FEA Engineering Analysis

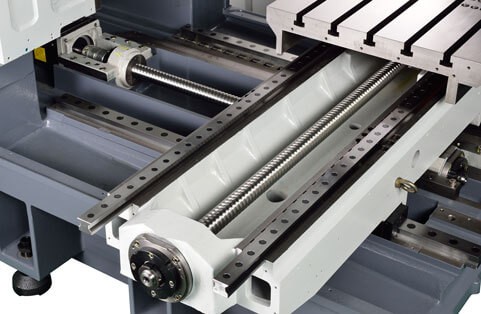

Wider column span, heavy duty and high precision roller linear guides of 35/ 45/ 45 mm on X/ Y/ Z and large 45 mm diameter pretensioned ball screws ensure transmission rigidity and machining stability.

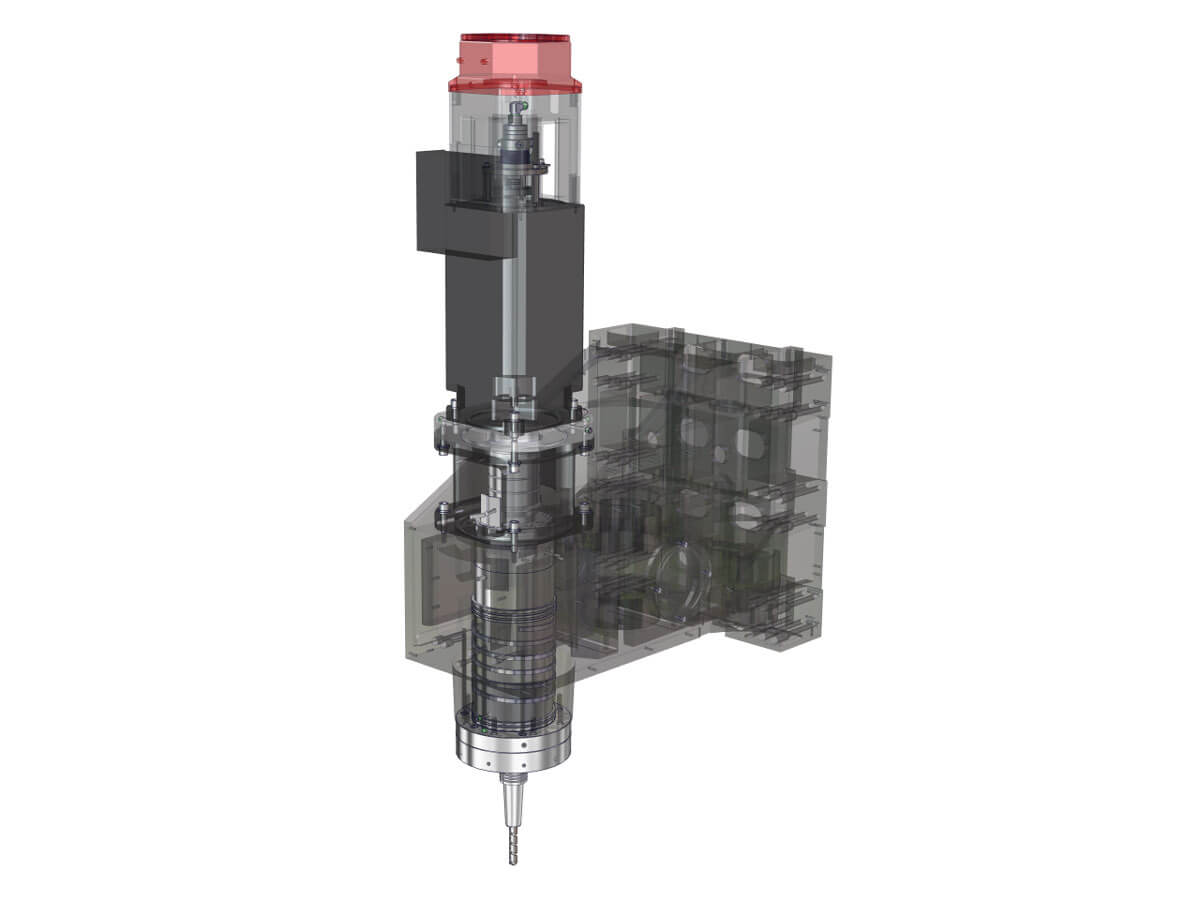

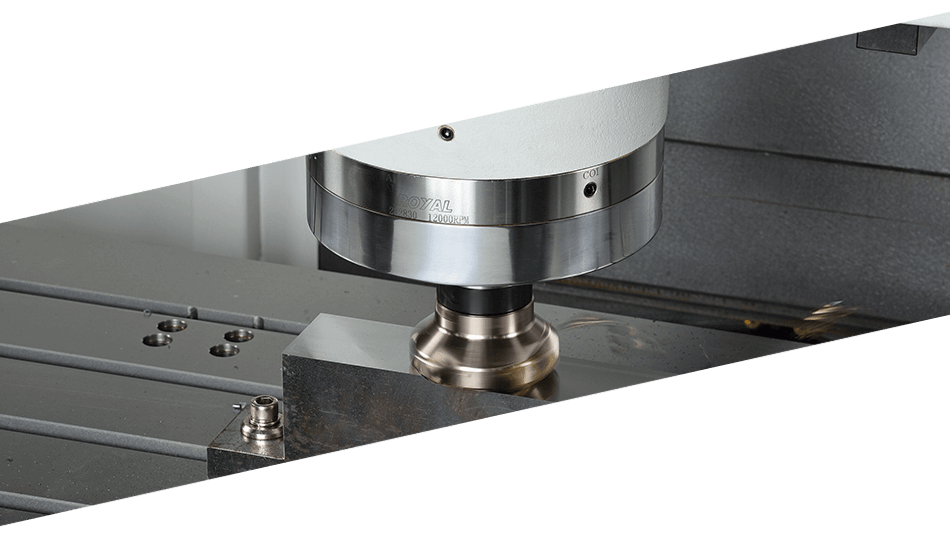

Reliable DDS- Direct Drive Spindle
The design of short type spindle nose and 4 P4 angular contact ceramic bearings can fix and support the bearings into spindle housing and headstock as to increase cutting stiffness.
Specification
| P Specifications | M Specifications | |||||
|---|---|---|---|---|---|---|
| ITEM | 10 P | 12 P | 15 P | 12 M | 15 M | 24 M |
| Working Range | ||||||
| Travel X/Y/Z | 760/ 610/ 610 mm | 760/ 610/ 610 mm | ||||
| Table size | 1,000 x 600 mm | 1,000 x 600 mm | ||||
| Table load capacity | 700 kg | 700 kg | ||||
| Main Spindle | ||||||
| Max. spindle speed | 10,000 rpm | 12,000 rpm | 15,000 rpm | 12,000 rpm | 15,000 rpm | 24,000 rpm |
| Feed Drive | ||||||
| Rapid travel X/Y/Z | 36/ 36/ 36 m/ min | 48/ 48/ 48 m/ min | ||||
-Two faced contact tools are needed to get better cutting capability.
-Actual values may differ from the specification in the catalog caused by optional and peripheral accessories.
*¹Fanuc system spindle & servo motors adopt alpha series motors.
*Please be aware of the continuous performance improving policy, UnionMT reserves the rights to change product specifications, data, options, appearances and etc. without notice.
