Multi-Spindle Machining Center
MV324T
Machining Capability
Twin Spindle
Application
-
-
-
-
MV324T features higher production efficiency on the largest working range over the compact footprint; space saving, energy saving and automation suitable for small or medium parts and superior accuracy machining applications.

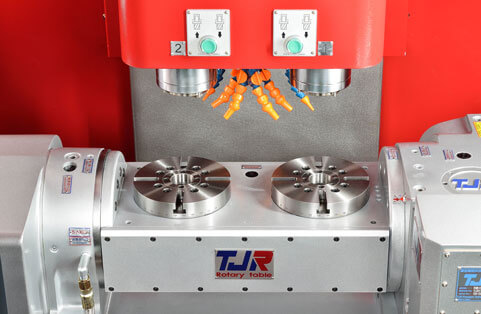

- 4th or 5th rotary table for efficiency
- Low gravity center base and wide column span
- Precision KTR coupling feed mechanism
- C1 ball screw provides superior positioning accuracy
Reliable and precision spindle
Dual contact faces BBT
Precision measurements better than ISO 10791-7 requirement
Rigid Headstock
Wider column span, heavy duty and high precision roller linear guide for rigidity.
High Speed Feed
High acceleration/ deceleration 1G and rapid feed rate up to 48/ 48/ 36 m/min to reduce non-cutting time and improve operation efficiecny.
Compact Floor Design
Large work range over compact floor to save space, energy, time and investment.
Specification
| ITEM | 12 P | 15 P | 24 P | |||
|---|---|---|---|---|---|---|
| Working Range | ||||||
| Travel X/ Y/ Z | 270 x 400 x 500 mm | |||||
| Spindle nose to table surface | 200~700 mm | |||||
| Table size | 850 x 410 mm | |||||
| Table load capacity | 250 kg | |||||
| T slot width/ qty/ pitch | 14 mm/ 3/125 mm | |||||
| Main Spindle | ||||||
| Spindle type | BBT 20, Coupling, Grease | HSK E40 Motor spindle | ||||
| Spindle quantity | 2 Spindles | |||||
| Distance between spindles | 240 mm | |||||
| Max. spindle speed | 12,000 rpm | 15,000 rpm | 24,000 rpm | |||
| Max. spindle output | 11kW, S3-15% | 13kW, S3-15% | 11kW, S3-15% | |||
| Max. spindle torque | 70 Nm | 41.4 Nm | 17.5 Nm | |||
| Automatic Tool Changer | ||||||
| Magazine pots | 20 x 2; 30 x 2 (Option) | |||||
| Max. tool adj. w/o tool | 75/ 150 mm；50/100 mm (Option) | |||||
| Max. tool length | 200 mm | |||||
| Max. tool weight | 3 kg | |||||
| CTC time | 2.7 sec. | |||||
| Machine Size | ||||||
| Dimension W x D x H | 1,800 x 2,529 x 2,484 mm | |||||
| Weight | 3,400 kg | |||||
-Please be aware of the continuous performance improving policy, UnionMT reserves the rights to change product specifications, data, options, appearances and etc. without notice.
