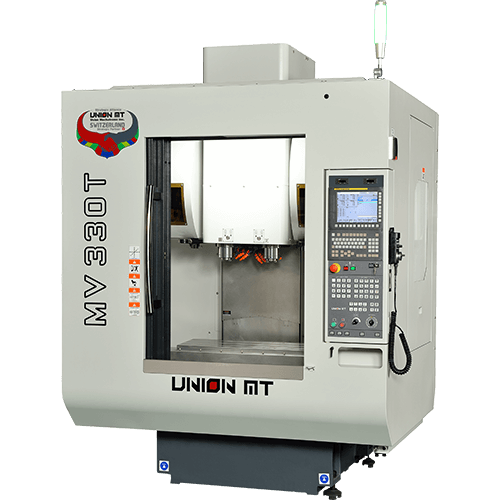

Multi-Spindle Machining Center
MV330T
Machining Capability
Twin Spindle
Application
-
-
-
-
MV 330T features higher production efficiency on the largest working range over the compact footprint; space saving, energy saving and automation suitable for small or medium parts and superior accuracy machining applications.

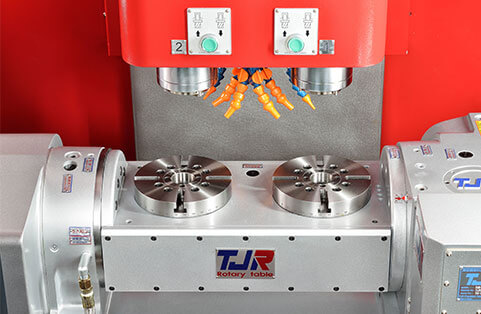

- 4th or 5th rotary table for efficiency
- Low gravity center base and wide column span
- Precision KTR coupling feed mechanism
- C1 ball screw provides superior positioning accuracy
Reliable and precision spindle
Dual contact faces BBT
Precision measurements better than ISO 10791-7 requirement

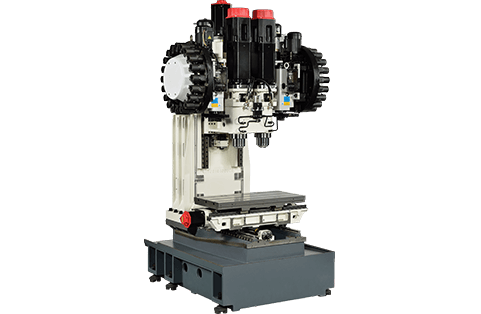

High Rigidity Structure
Wider column span, heavy duty and high precision roller linear guide for rigidity.
High Speed Feed
High acceleration/ deceleration 0.5G and rapid feed rate up to 36/ 36/ 36 m/min to reduce non-cutting time and improve operation efficiecny.

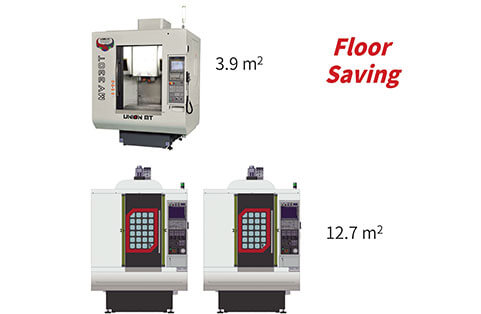

Compact Floor Design
Large work range over compact floor to save space, energy, time and investment.
Specification
| ITEM | 330 | |||||
|---|---|---|---|---|---|---|
| Working Range | ||||||
| Travel X/ Y/ Z | 330 x 400 x 450 mm | |||||
| Spindle nose to table surface | 200~650 mm | |||||
| Table size | 850 x 410 mm | |||||
| Table load capacity | 250 kg | |||||
| Main Spindle | ||||||
| Spindle type | 30 Taper | |||||
| Spindle quantity | 2 Spindles | |||||
| Distance between spindles | 300 mm | |||||
| Max. spindle speed | 12,000 rpm | |||||
| Max. spindle output | 11kW, S3-15% | |||||
| Max. spindle torque | 70 Nm | |||||
| Automatic Tool Changer | ||||||
| Magazine pots | 24 x 2 | |||||
| Max. tool adj. w/o tool | 70/ 150 mm | |||||
| Max. tool length | 150 mm | |||||
| Max. tool weight | 4 kg | |||||
| CTC time | 3.5 sec. | |||||
| Machine Size | ||||||
| Dimension W x D x H | 2,770 x 1,860 x 2,560 mm | |||||
| Weight | 4,200 kg | |||||
-Please be aware of the continuous performance improving policy, UnionMT reserves the rights to change product specifications, data, options, appearances and etc. without notice.
