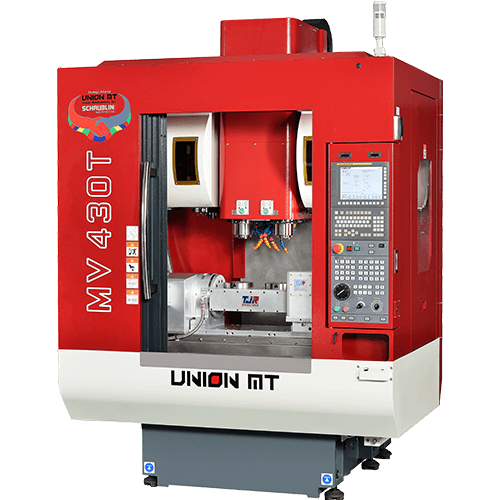

Multi-Spindle Machining Center
- Precision Mold
MV 430T features higher production efficiency on the largest working range over the compact footprint; space saving, energy saving and automation suitable for small or medium parts and superior accuracy machining applications.

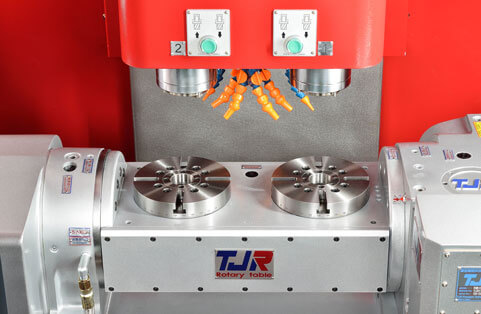

- 4th or 5th rotary table for efficiency
- Low gravity center base and wide column span
- Precision KTR coupling feed mechanism
- C1 ball screw provides superior positioning accuracy
High Rigidity Structure
Wider column span, heavy duty and high precision roller linear guide for rigidity.
High Speed Feed
High acceleration/ deceleration 0.5G and rapid feed rate up to 36/ 36/ 36 m/min to reduce non-cutting time and improve operation efficiecny.

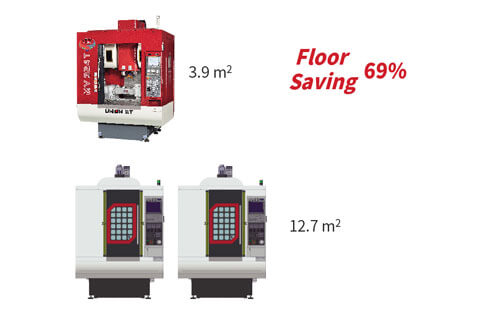

Compact Floor Design
Large work range over compact floor to save space, energy, time and investment.
|Travel X/ Y/ Z||330 x 400 x 450 mm|
|Spindle nose to table surface||200~650 mm|
|Table size||850 x 410 mm|
|Table load capacity||250 kg|
|Spindle type||40 Taper|
|Spindle quantity||2 Spindles|
|Distance between spindles||300 mm|
|Max. spindle speed||12,000 rpm|
|Max. spindle output||11kW, S3-15%|
|Max. spindle torque||70 Nm|
|Automatic Tool Changer|
|Magazine pots||20 x 2|
|Max. tool adj. w/o tool||75/ 75 mm|
|Max. tool length||150 mm|
|Max. tool weight||6 kg|
|CTC time||3.5 sec.|
|Dimension H x W x D||2,770 x 1,860 x 2,560 mm|
-Please be aware of the continuous performance improving policy, UnionMT reserves the rights to change product specifications, data, options, appearances and etc. without notice.
